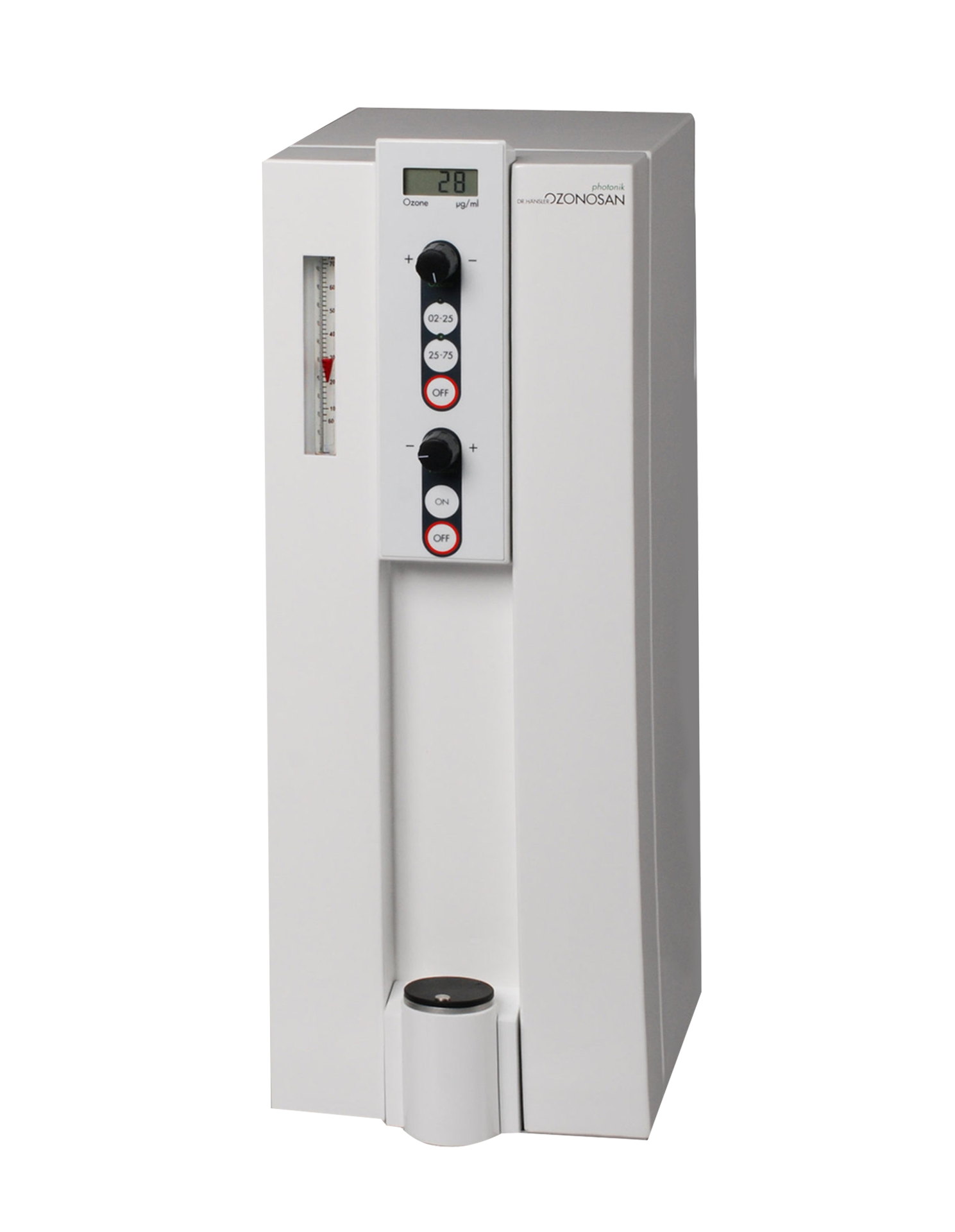

OZONOSAN Photonic

Medical Ozone Device Providing Comfortable Use in Narrow Areas

Structure Desktop compact
Mode of Operation Normobaric infusion technique
The patient is not connected to the device during treatment
Concentration Range 2 - 80 µg / ml
Photometric Measurement Continuous ozone measurement with automatic calibration is displayed on the digital display.
Volume Flow 1-8 l / min
Continuous change
Working Pressure Inside the Device 0.5 bar
Catalyst Strong water vapor resistant. It can be changed by the user without the need for tools.
Absorbent Integrated high performance pump, steplessly adjustable between 0-0.8 bar negative pressure
Ozonated Water Production Water ozonation unit as optional accessory
Dimensions 560 x 200 x 375 mm
Weight 20 kg
Electrical Data 230 VAC, 50 Hz, 1.2 A Protection Class I, TypeB
Classification IIa, according to EU directive 93/42 / EWG on medical devices
Marking CE 0123
Warranty Generator - 2 years Ozone tubes and catalyst - 5 years extended warranty

Documents

OZONOSAN Photonic - Trailer
Trailer
Other Medical Ozone Devices
I-MODE
I-MODE - Medical Ozone Devices - Ozon Health Services DETAIL
TURKOZONE Blue S
TURKOZONE Blue S - Medical Ozone Devices - Ozon Health Services DETAIL

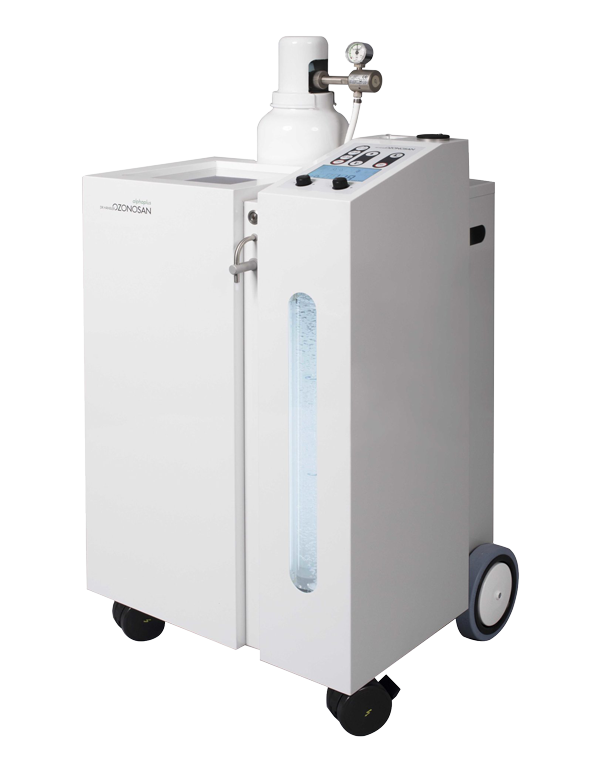

OZONOSAN Alpha Plus
