Structure |

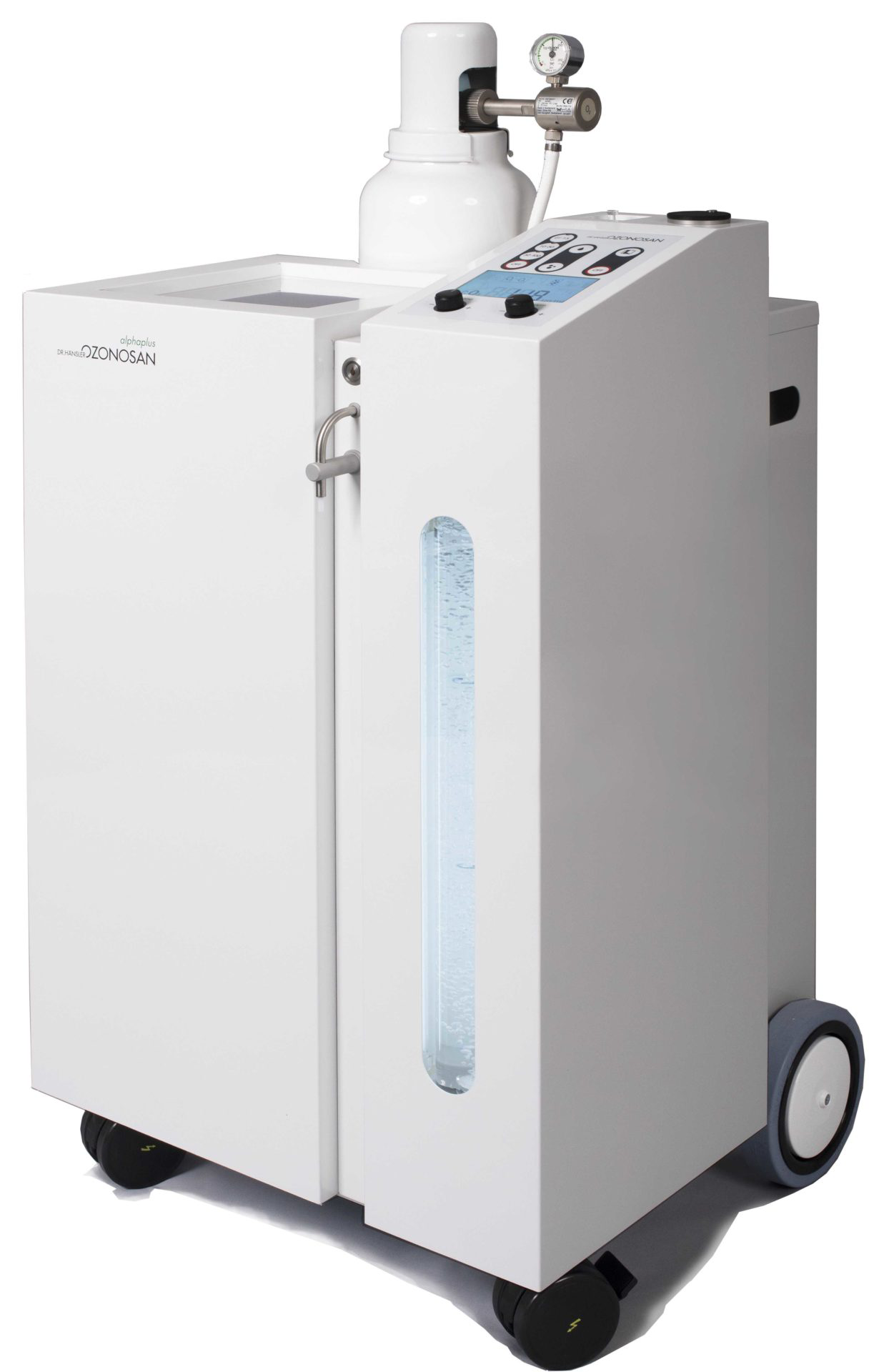

Stationary device with wheels |
|
Mode of Operation |
Normobaric infusion technique The patient is not connected to the device during treatment |
|
Concentration Range |
2 - >100 µg/ml |
|
Photometric Measurement |
Continuous ozone measurement with automatic calibration is displayed on the digital display. |
|
Volume Flow |
1-3-6 l / min depending on the concentration range |
|
Working Pressure Inside the Device |
0.5 bar |
|
Catalyst |
Strong water vapor resistant. It can be changed by the user without the need for tools. |
|
Absorbent |
Integrated high performance pump, steplessly adjustable between 0-0.8 bar negative pressure |
|
Ozonated Water Production |
Integrated 3-liter tank 1-liter production unit |
|
Dimensions |
850 x 450 x 450 mm |
|
Weight |
38 kg |
|
Electrical Data |
230 VAC, 50 Hz, 1.2 A Protection Class I, TypeB |
|
Classification |
IIa, according to EU directive 93/42 / EWG on medical devices |
|
Marking |
CE 0123 |
|
Warranty |
Generator - 2 years Ozone tubes and catalyst - 5 years extended warranty |
