I-MODE

Turkey's first domestic ozone resources;

i-MODE // "Intelligent Medical Ozone Device" Our newest ozone device "I-Mode", which stands out with its smart modes and saving, is ready for your clinic!





Clinical Indications by Usage Modes



Bag Application
It is used for topical ozone applications in wounds due to circulatory disorders, bedsores and decibitus ulcers.

Injector Application
Systemic Major and Minor Autohemotherapy, rectal insufflation, subcutaneous and intramuscular applications are used
Used in Chronic Inflammatory Diseases, Fibromyalgias, Infections and Regulation of the Immune System.

Set Preparation
Setting the Autohemotherapy Sets that do not contain Vacuum and Anti-Coagulants to the desired Vacuum
is used for.

Water Ozonation
It is used in Wound and Burn Treatment, as a Support to Surgical Applications and in Dentistry.

Cup Application
It is used in the treatment of difficult-healing wounds and ulcers.

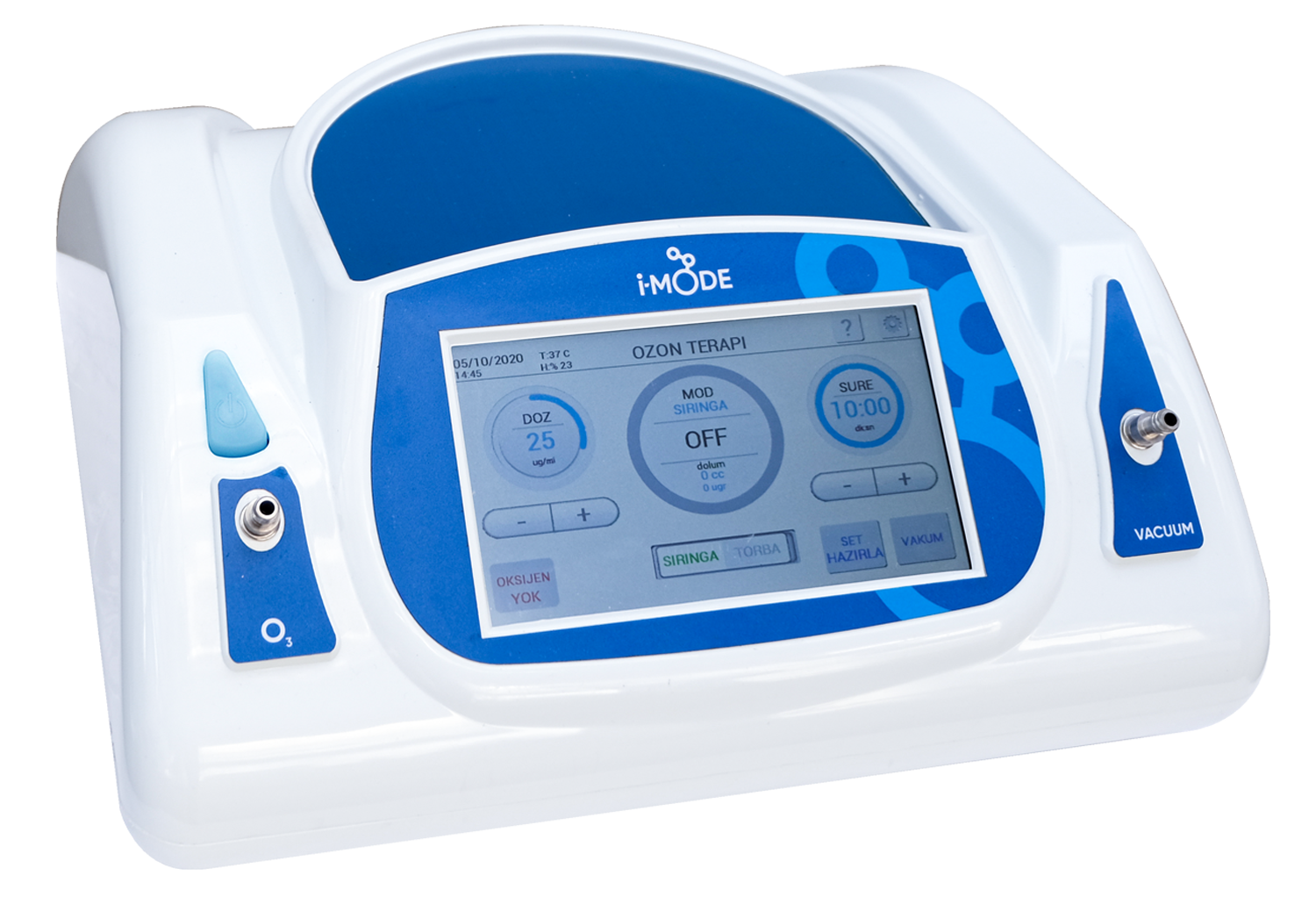

Brand / Model I-MODE MEDICAL OZONE DEVICE
Supply Voltage 24 Volt DC / 3.75 A Max.
Power Consumption Maximum 90 W
Concentration It can be adjusted from 0.1 μg / ml to 3 μg / ml in increments of 0.1 μg / ml.
Adjustable from 3 μg / ml to 80 μg / ml in 1 μg / ml increments.
Tolerance +/- 10%
Flow It can be adjusted between 0.7 lt / min and 2 lt / min.
Nominal Flow 1 lt / min
Vacuum Value -950 mbar
Max Efficient Working Environment 22 - 26 °C
Working Humidity 20% - 70 % RH
Storage temperature 10 – 40 °C
Dimensions 370x333x179 mm
Weight 8 kg
Electrical Class Type Sınıf II
IP IP20
Software EN 62304:2006 B Sınıfı
Type B
EMC This device has been tested in accordance with the standard IEC 606001-1-2 and stated to comply with acceptable limits.

Documents

I-Mode Tanıtım Broşürü
I-Mode Kullanma Klavuzu
